AI Technology
COOL-PAD™ CPR-6002
COOL-PAD™ CPR-6002
Regular price
$20.00 USD
Regular price
Sale price
$20.00 USD
Unit price
/
per
Couldn't load pickup availability
Overview

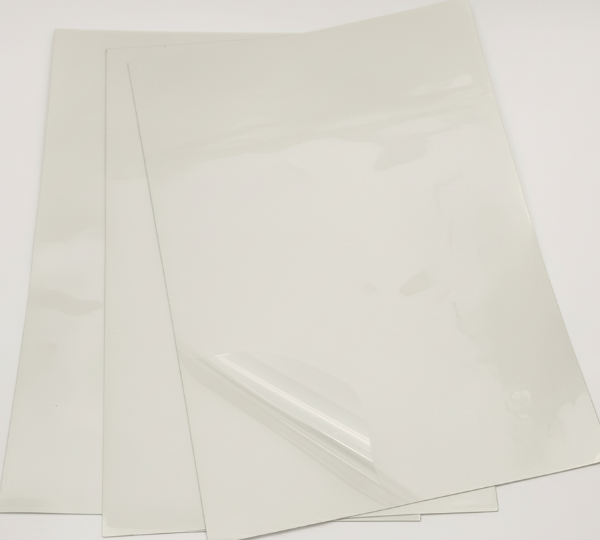

COOL-PAD™ CPR-6002 is a cutting-edge product meant to fill the air gap between the heating part and the heat sink. Offering high heat conduction characteristics and excellent electrical insulation characteristics, it can be used as heat transfer materials for the heating part of electrical and electronic components use. Manufactured by dispersing ceramic powder in acrylic + hotmelt resin with excellent heat resistance electrical insulation.
Key Features
- Heat Dissipation: Excellent heat dissipation because a file with excellent heat dissipation function is used
- Highly Flexibility: Excellent flexibility and elasticity, good adhesion to heat source, and high heat conduction effect
- Halogen-Free: Halogen-free product
Applications
- Electric vehicle batteries
- Laptop manufacturing
- Television manufacturing
Technical Specifications
| Property | Value | Test Method |
|---|---|---|
| Thickness (mm) | 1mm/2mm | - |
| Thickness Tolerance (%) | ±10 | - |
| Conductivity (W/m.K) | 8 | ASTM D5470 |
| Volume Resistivity (Ω·cm) | 1012 | ASTM D257 |
| Dielectric Breakdown Voltage (kVdc/mm) | >7 | ASTM D149 |
| Hardness (shore 00) | 70~80 | ASTM D2240 |
| Operating Temperature (°C) | -60~180 | - |
