AI Technology
COOL-PAD™ CPR-6352
COOL-PAD™ CPR-6352
Regular price
$30.00 USD
Regular price
Sale price
$30.00 USD
Unit price
/
per
Couldn't load pickup availability
Overview

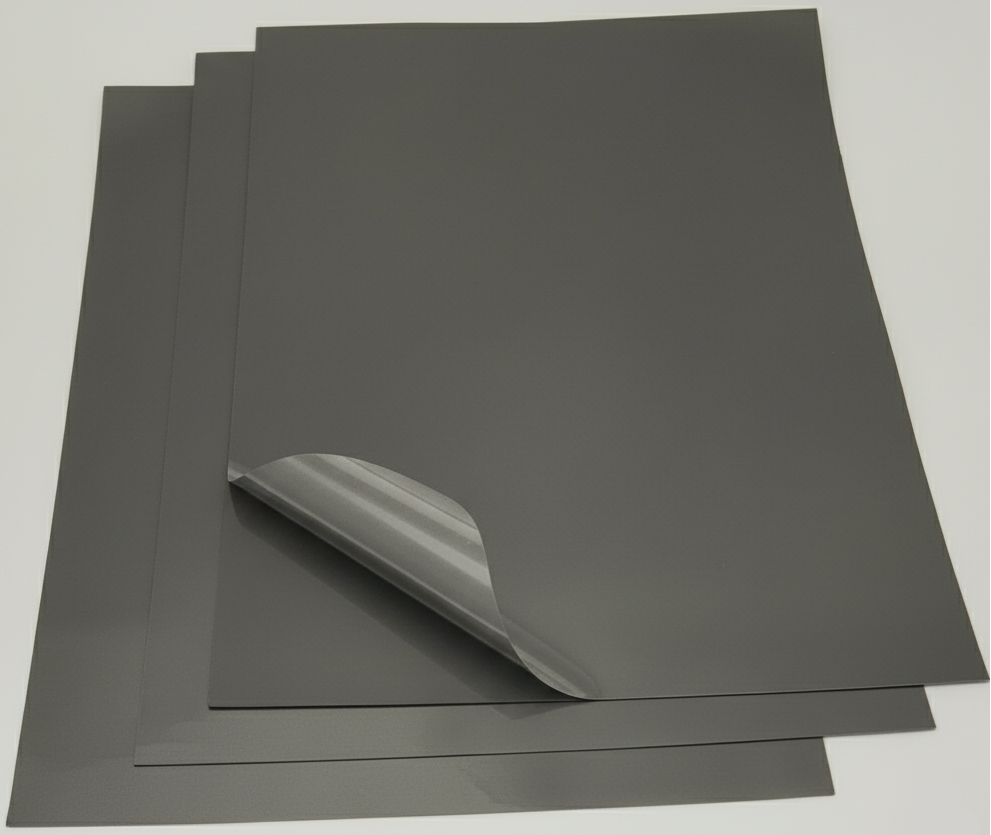

COOL-PAD™ CPR-6002 is a cutting-edge product meant to fill the air gap between the heating part and the heat sink. With the high heat conduction characteristics and excellent electrical insulation characteristics, it can be used as a heat transfer material for the heating part of electrical and electronic components use. COOL-PAD™ CPR-6002 is manufactured by dispersing ceramic powder in silicone resin, which has excellent heat resistance (250°C) and electrical insulation (satisfies DC 4.0KV).
Key Features
- Heat Dissipation: Excellent heat dissipation characteristics due to the use of filler with outstanding heat dissipation function
- Highly Flexibility: Excellent flexibility and elasticity provide good adhesion to heat sources and high heat conduction effect
- Halogen-Free: Halogen-free product
Applications
- Electric vehicle batteries
- Smartphone batteries
- High-voltage PTC heaters
- Laptop manufacturing
- Television manufacturing
- Digital camera manufacturing
Technical Specifications
| Property | Value | Test Method |
|---|---|---|
| Thickness (mm) | 0.25 | - |
| Thickness Tolerance (%) | ±10 | - |
| Conductivity (W/m.K) | 5 | ASTM D5470 |
| Volume Resistivity (Ω·cm) | 1013 | ASTM D257 |
| Dielectric Breakdown Voltage (kVdc/mm) | >7 | ASTM D149 |
| Hardness (shore 00) | 65~80 | ASTM D2240 |
| Operating Temperature (°C) | -60~180 300 |
(within 20 minutes) |
| Flame Rating | V-0 | UL94 |
